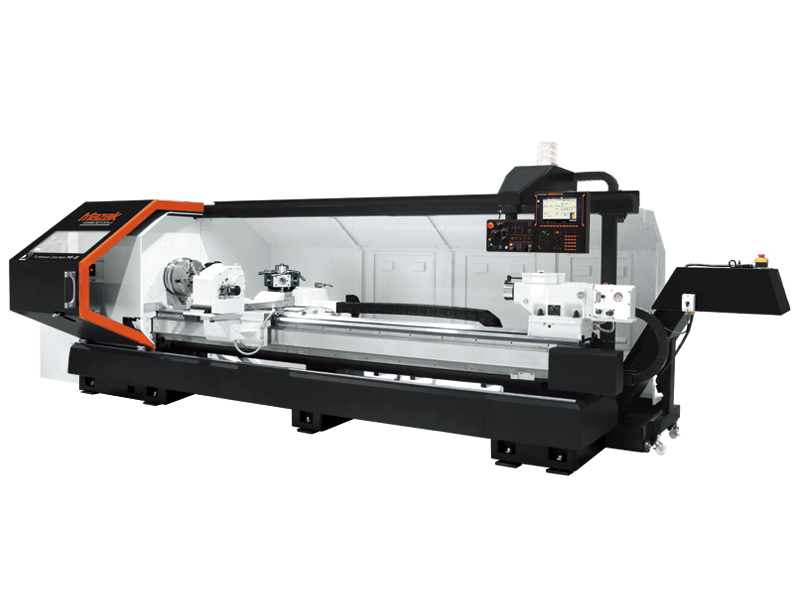

Model: TURNING CENTER M-5

Machine Specifications


Specification Bed Length – 2000U mm Bed Length – 3000U mm
Capacity Maximum Swing 610 mm / 24.02 in 610 mm / 24.02 in
Maximum Machining Diameter 580 mm / 22.830 in 580 mm / 22.830 in
Maximum Machining Length 2080 mm / 81.890 in 2985 mm / 117.520 in
Main Spindle Maximum Speed 2200 rpm 2200 rpm
Motor Output (30 minute rating) 22 kw / 30.0 hp 22 kw / 30.0 hp
Turret (Upper) Number of Tools 14 14
Feed Axes Travel (X Axis) 560 mm / 22.05 in 560 mm / 22.05 in
Travel (Z Axis) 2055 mm / 80.91 in 3075 mm / 121.06 in
Travel (W Axis) 130 mm / 5.12 in 130 mm / 5.12 in
